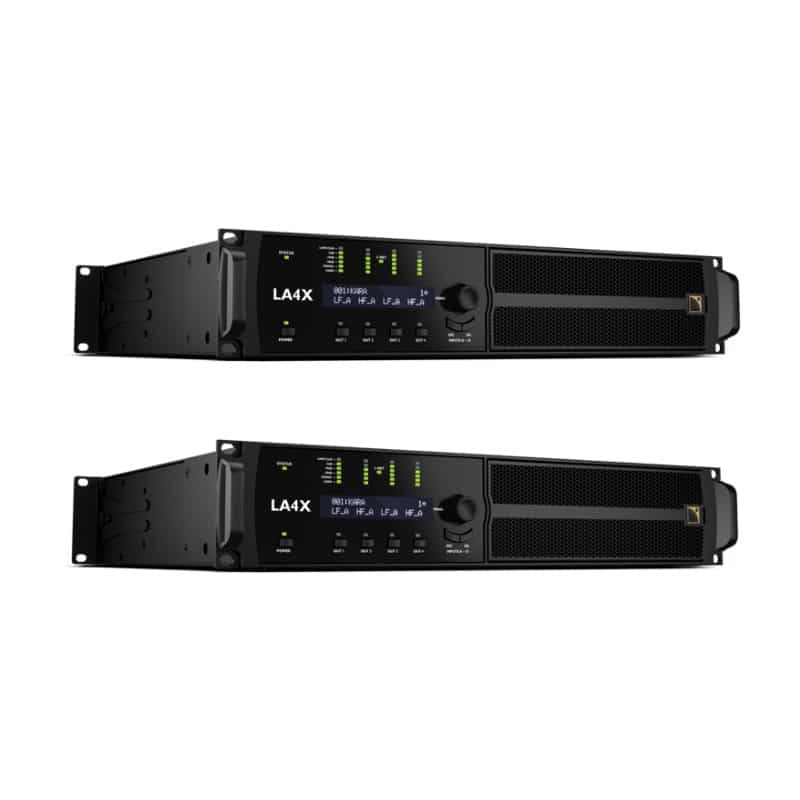

L-ACOUSTICS LA4X AMP RACK/2

Numéro d'article : 4494

Rack de 2 amplificateurs

Amplification and Power Supply
- Amplification Class: Class D
- Output Power, All Channels Loaded:
  - 4 x 1000 W at 4 ohms
  - 4 x 1000 W at 8 ohms
- Power Supply Model: Universal Switched Mode Power Supply (SMPS) with Power Factor Correction (PFC)
- Mains Rating: 100 V – 240 V ±10%, 50-60 Hz
DSP (Digital Signal Processor)
- DSP: SHARC 32-bit, floating point, 96 kHz sampling rate
- I/O Routing: Flexible 4×4 routing matrix
- Per Output Channel:
  - Built-in EQ station with 8 IIR, 4 FIR linear phase EQ filters
  - Array morphing, Air absorption compensation filters
  - Internal IIR and FIR EQ algorithms
  - L-DRIVE advanced system protection
  - Output delay from 0 to 1000 ms
Technologies
- Loudspeaker Management: L-DRIVE advanced system protection
Latency
- Standard Latency (Analog/Digital Inputs): 3.84 ms
- Low Latency (Analog/Digital Inputs): 0.84 ms
Inputs
- Milan-AVB: 4 channels from 1 stream (of up to 8 channels)
- AES/EBU: 4 channels AES/EBU (2 x AES3) with SRC
- Analog: 4 channels
- Connections:
  - 2 etherCON 1 Gb/s I/O+ control
  - 4 female 3-pin XLR (2 x switching analog/AES3)
  - 4 male 3-pin XLR links
Outputs
- Loudspeaker Connections: 4 x SpeakON
Circuit Protection
- Mains and Power Supply: Over and under voltage / over temperature / overcurrent
- Power Outputs: Overcurrent / short circuit / over temperature
Interface
- Display/Indicators: LCD and LED’s
- Navigation: Rotary encoder, power and mute keys
Control and Monitoring
- L-Acoustics Remote Control Software: LA Network Manager
- Third-Party Management Solutions: Q-SYS® / Crestron® / Control4® / Savant®/ SNMP / Extron®
Operating Conditions
- Temperature: 0º C / 32º F to +50º C / 122º F
Physical Data
- Height: 2U
- Weight: 11.3 kg / 24.9 lb
- Protection Rating: IP30

Aucun accessoire suggéré

Amplification & électronique

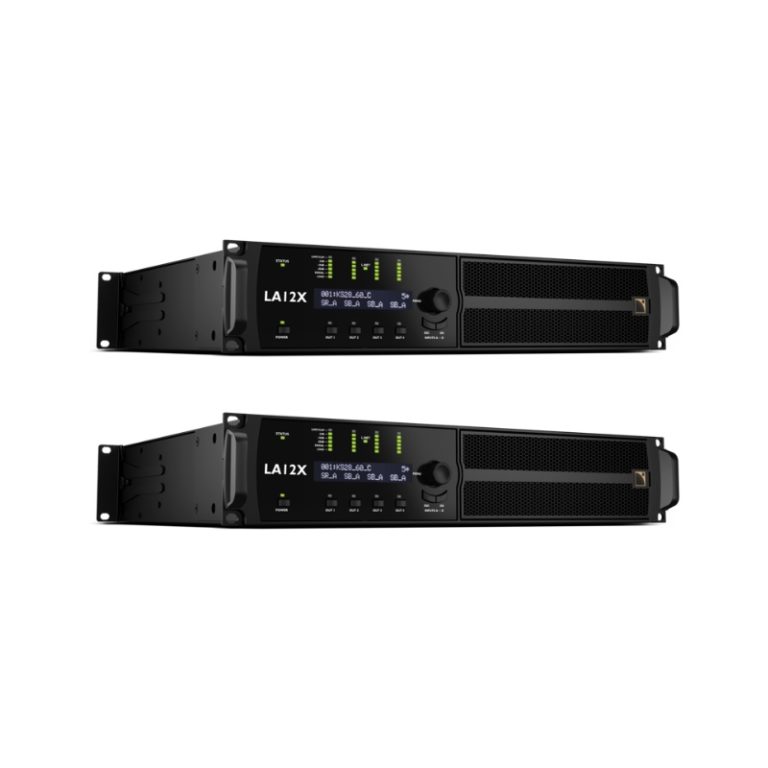

L-ACOUSTICS LA12X AMP RACK/2
